Tension Meter MKM

3 Tension ranges available
from 10 – 50 cN up to 50 – 400 cN

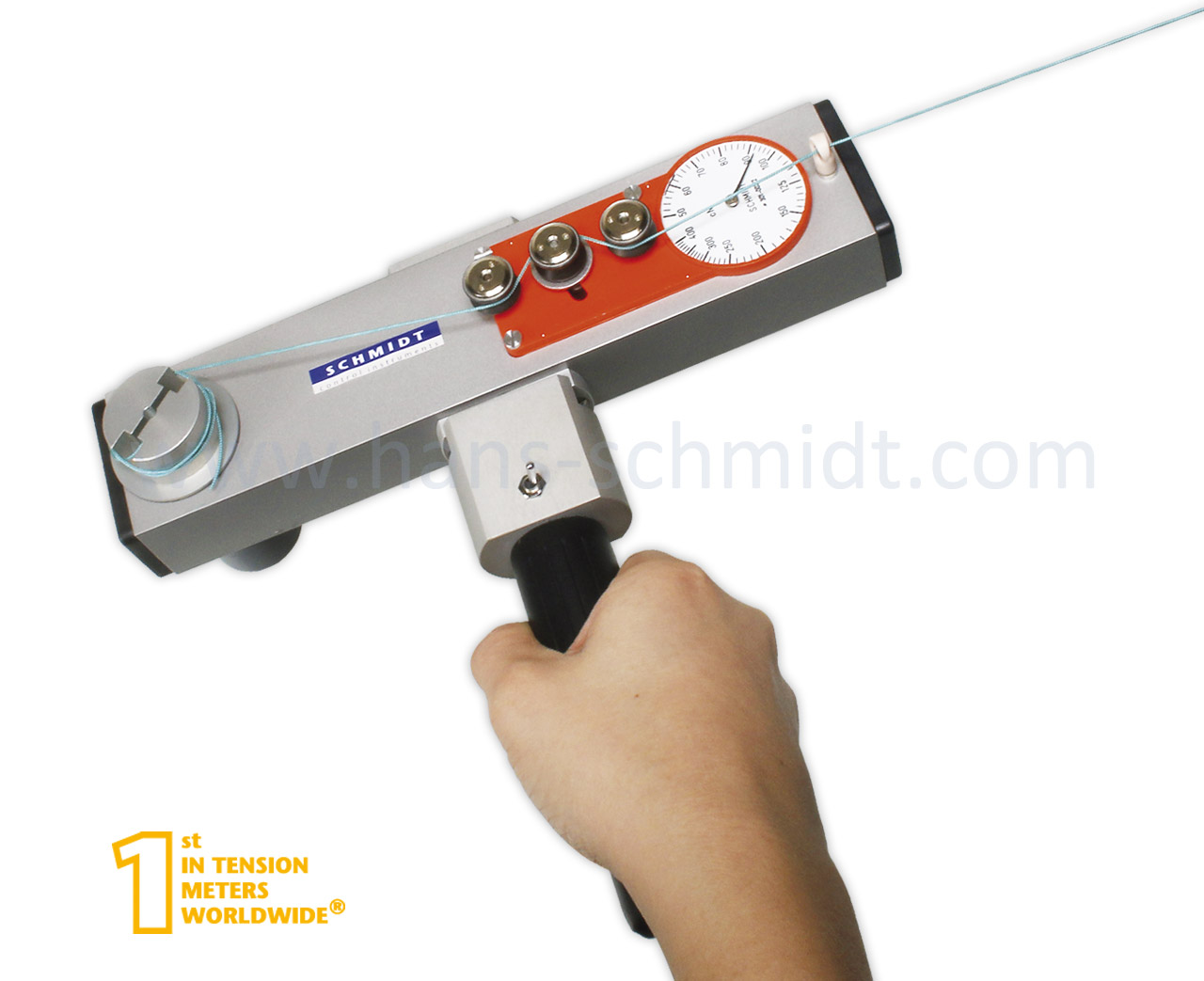

Mechanical tension meter with motorized take-up wheel.
Consequently e. g. yarn brakes can be adjusted under similar conditions (take-up speed). Especially convenient for creel bobbins and sewing machines.

The tension meter is suitable for left or right hand use by two-sided mountable handle

Motorized hand-held unit with take-up speed ~ 8 m/min respectively ~ 15 m/min


Special Features

• The analog display shows changing and fluctuating tensions fast and enables an optimal process adjustment

• Motorized tension meter MKM (take-up speed ~ 8 m/min for MKM-400, respectively 15 m/min for MKM-50 and MKM-100)

• Take-up wheel with built-in tension meter model MK

• Handle can be reversed, for left or right hand use depending on application

• Battery operated

Standard Features

• V-grooved, ball-bearing mounted guide rollers

• Each instrument is individually calibrated for highest accuracy

• Scale 41 mm Ø

• Power supply: 9 V rechargeable Li-Ion battery with integrated charging electronics

• Optionally available: Inspection Certificate 3.1 according EN 10204

• Certificate of Compliance with the order 2.1 according EN 10204 is included



Available Models

Model Measuring Range
Take-up Speed
SCHMIDT Calibration *
MKM-50 10 – 50 cN 15 m/min PA: 0.12 mm Ø
MKM-100 10 – 100 cN 15 m/min PA: 0.12 mm Ø
MKM-400 50 – 400 cN 8 m/min PA: 0.20 mm Ø
Other tension ranges available on request.
Other units of measure available, such as g.
* Suitable for 95 % of applications – PA = Polyamide Monofilament
