Tension Meter Q

9 Tension ranges available
from 2 – 10 cN up to 50 – 1000 cN

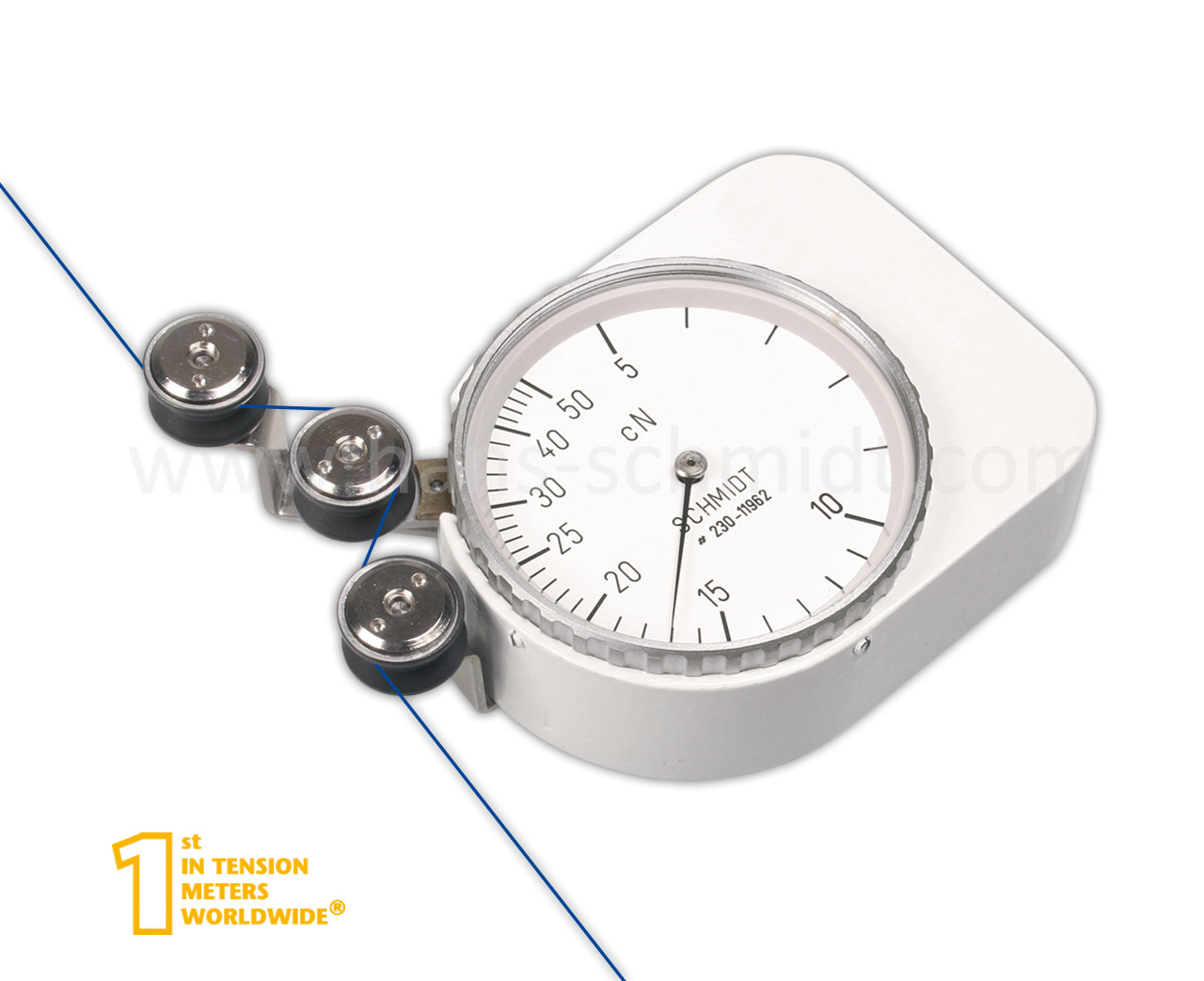

Stationary mechanical tension meter for measuring tensions of fibres, threads and thin wires

Measuring device with large, easy to read scale

Movement with magnetic damping for easy reading when tensions fluctuate

Description

Special Features

• The analog display shows changing and fluctuating tensions fast and enables an optimal process adjustment

• Easy online mounting with screws (M6), sidewise or back side

• Movement with magnetic damping

• Tension meter Q with large, easy to read scale Ø 54 mm

Standard Features

• Everything in operator’s view:
– the guide rollers
– the measured material
– the readings

• Ball-bearing mounted, V-grooved guide rollers

• Each instrument is individually calibrated for highest accuracy

• Tension meter with rugged shell cast aluminium housing

• Certificate of Compliance with the order 2.1 according EN 10204 is include

• Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report

Note: Series Q do not include a filament guide and material thickness compensator


Available Models

Model Tension Ranges
Measuring Head Width*
SCHMIDT Calibration Material**
Q-10 2 – 10 cN 65 mm PA: 0.12 mm Ø
Q-20 2 – 20 cN 65 mm PA: 0.12 mm Ø
Q-30 3 – 30 cN 65 mm PA: 0.12 mm Ø
Q-50 5 – 50 cN 65 mm PA: 0.12 mm Ø
Q-100 10 – 100 cN 65 mm PA: 0.12 mm Ø
Q-200 20 – 200 cN 65 mm PA: 0.12 mm Ø
Q-300 20 – 300 cN 65 mm PA: 0.20 mm Ø
Q-500 50 – 500 cN 85 mm PA: 0.20 mm Ø
Q-1000 50 – 1000 cN 85 mm PA: 0.30 mm Ø
Other tension ranges, measuring head widths available on request.
Other units of measure available – g.
* Outer distance between outside guide rollers.
** Suitable for 95 % of applications – PA = Polyamide Monofilament
