Tension Meter ZD2

6 Tension ranges available
from 3 – 30 cN up to 20 – 300 cN

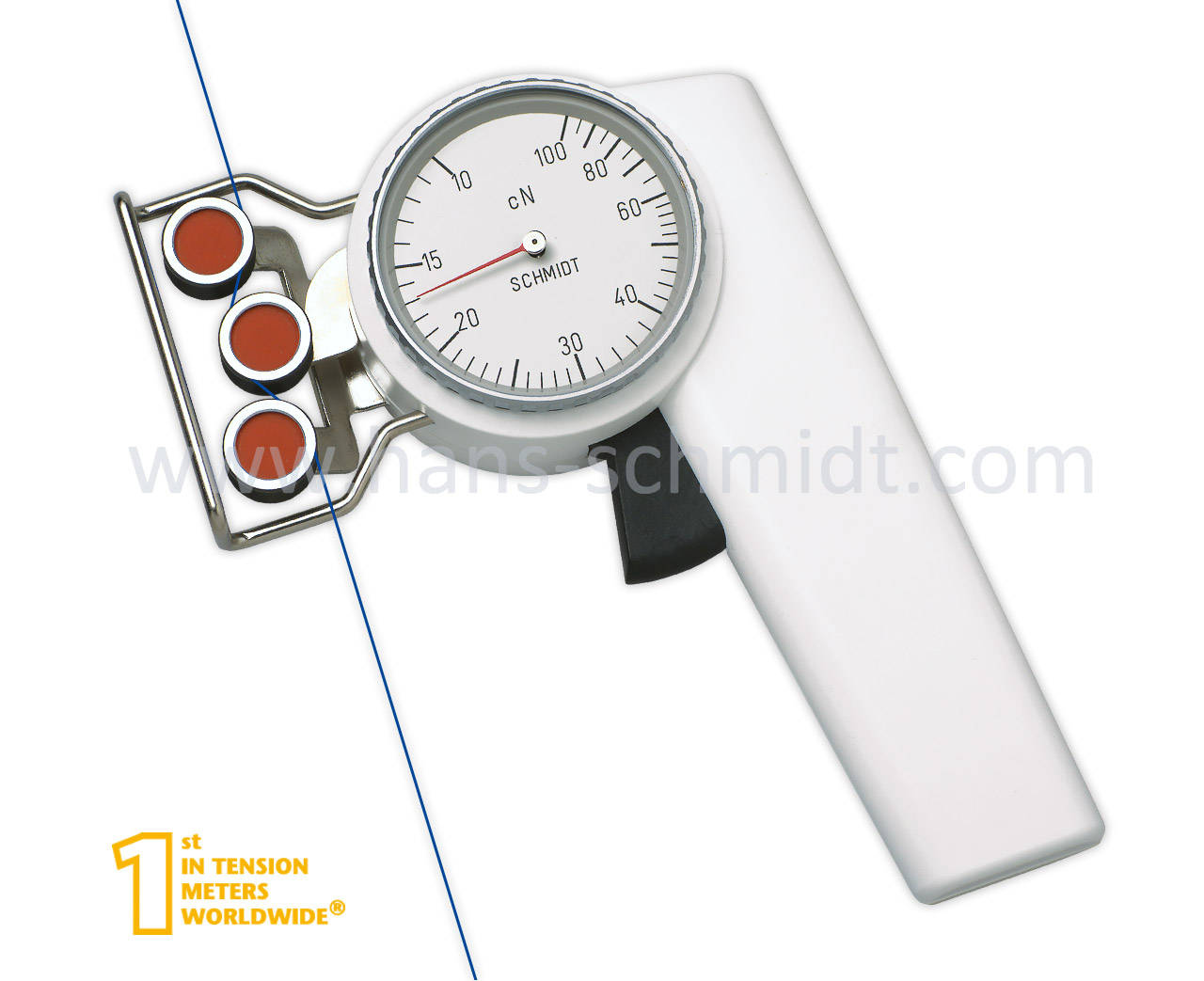

Economical mechanical tension meter for checking fibers, threads and fine wires with low tensions up to max. 300 cN

Universal measuring instrument with large guide rollers groove Ø 12 mm

Tension Meter for a variety of applications in the textile and wire industry

Description

Special Features

• The analog display of tension meter ZD2 shows changing and fluctuating tensions fast and enables an optimal process adjustment

• Filament guide and roller shifting mechanism ensure easy acquisition of the running material

• Large, easy to read scale (54 mm Ø)

• Light weight

Standard Features

• Everything in operator’s view:
– the guide rollers
– the measured material
– the readings

• Ball-bearing mounted, V-grooved guide rollers

• Each instrument is individually calibrated for highest accuracy

• Housing made of high-strength plastic

• Certificate of Compliance with the order 2.1 according DIN EN 10204 is included

• Optionally available: Inspection Certificate 3.1 according DIN EN 10204 with calibration report



Available Models

Model Tension Range
Measuring Head Width*
SCHMIDT Calibration Material**
ZD2-30 3 – 30 cN 63 mm PA: 0.12 mm Ø
ZD2-50 5 – 50 cN 63 mm PA: 0.12 mm Ø
ZD2-100 10 – 100 cN 63 mm PA: 0.12 mm Ø
ZD2-150 20 – 150 cN 63 mm PA: 0.12 mm Ø
ZD2-200 20 – 200 cN 63 mm PA: 0.12 mm Ø
ZD2-300 20 – 300 cN 63 mm PA: 0.20 mm Ø
Other tension ranges available on request.
Other units of measure available, such as g.
*  Width of filament guide
** Suitable for 95 % of applications – PA = Polyamide Monofilament
