Tension Meter DXE

6 Tension ranges available
from 10 – 50 cN up to 200 – 2000 cN

Special mechanical tension meter with small measuring head, where access space is limited or where filaments run close together

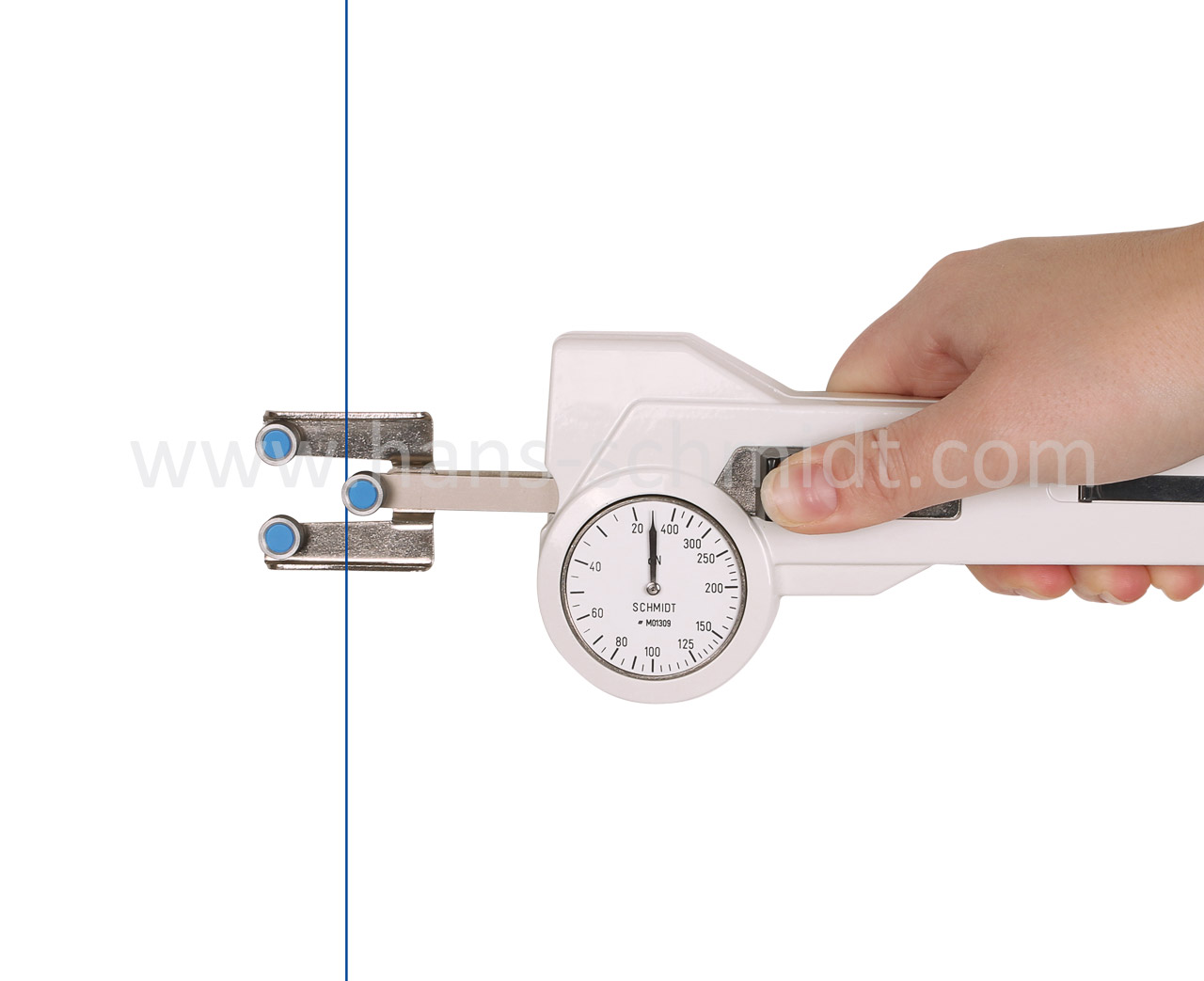

Hand-held instrument mostly used in textile industry or in wire industry for thin wires

Tension meter with turned-up outer finger edges for easy thread

Description

Special Features

• The analog display of tension meter DXE shows changing and fluctuating tensions fast and enables an optimal process adjustment

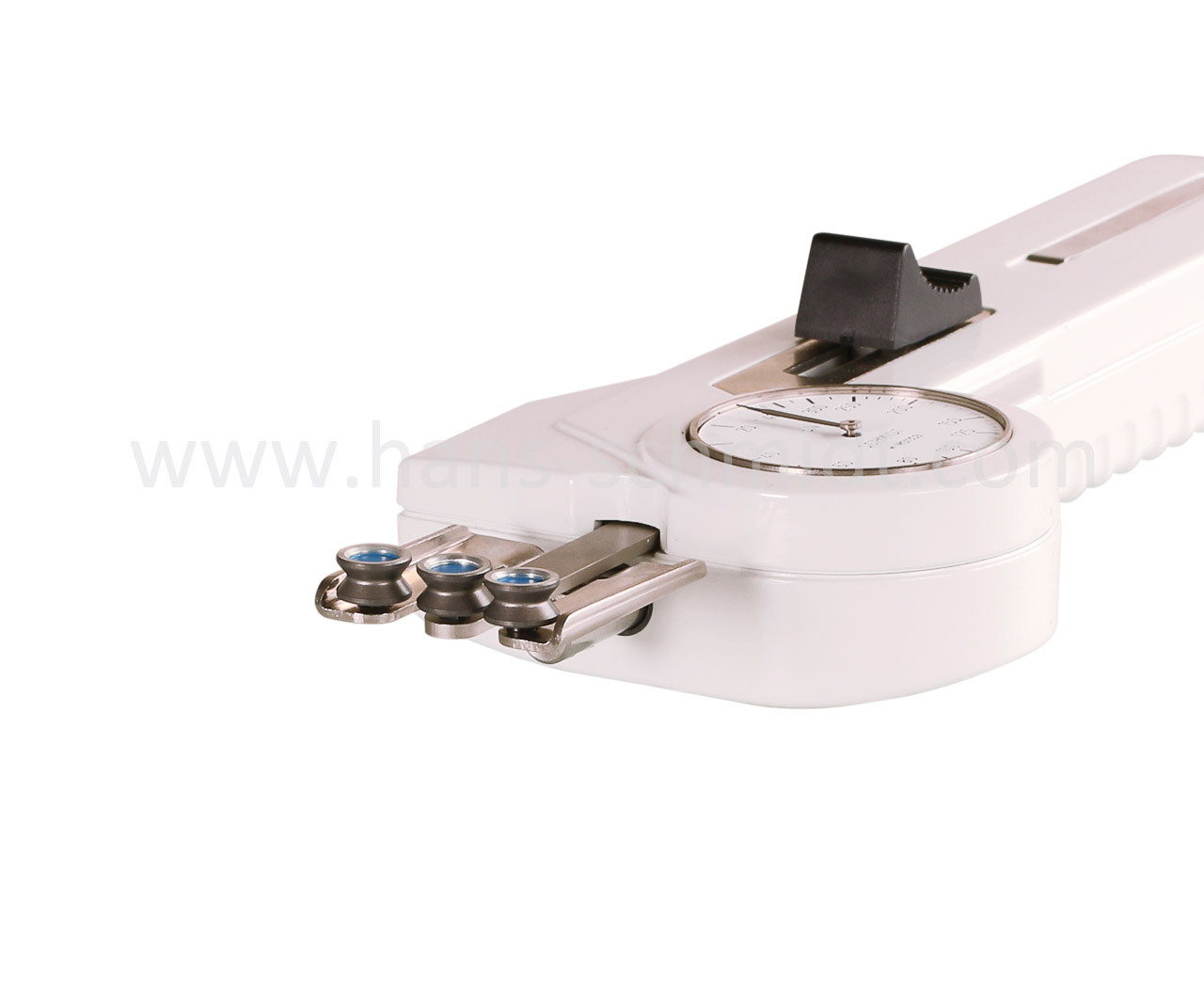

• Small measuring head width with of only 38 or 36 mm for measurements at positions with limited space

• Length of measuring head approx. 47 mm

• Turned-up outer finger edges guide the running filament into the roller grooves

• Movable outer guide rollers

• Built-in mounting holes permit fixed installation for continuous tension measurement

• Special finger support located on the rear side reduces the effort to move the outer roller assembly

Standard Features

• Everything in operator’s view:
– the guide rollers
– the measured material
– the readings

• Large, V-grooved guide rollers with 32 mm groove diameter, ball-bearing mounted

• Each instrument is individually calibrated for highest accuracy

• 41 mm Ø scale

• Tension meter with rugged aluminium housing

• Certificate of Compliance with the order 2.1 according EN 10204 is included

• Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report

Finger Support : We recommend mounting a finger support for higher tension ranges

Note : Tension meter DXE does not include a material thickness compensator



Available Models

Model Measuring Range
Measuring Head Width* X
Measuring Head Length Y
SCHMIDT Calibration Material**
DXE-50 10 – 50 cN 38 mm 47 mm PA: 0.12 mm Ø
DXE-120 20 – 120 cN 38 mm 47 mm PA: 0.12 mm Ø
DXE-200 20 – 200 cN 38 mm 47 mm PA: 0.12 mm Ø
DXE-400 20 – 400 cN 38 mm 47 mm PA: 0.20 mm Ø
DXE-1000 50 – 1000 cN 36 mm 47 mm PA: 0.30 mm Ø
DXE-2000 200 – 2000 cN 36 mm 47 mm PA: 0.30 mm Ø
Other tension ranges available on request.
Other units of measure available, such as g.
*  Width of bracket assembly
** Suitable for 95 % of applications – PA = Polyamide Monofilament
